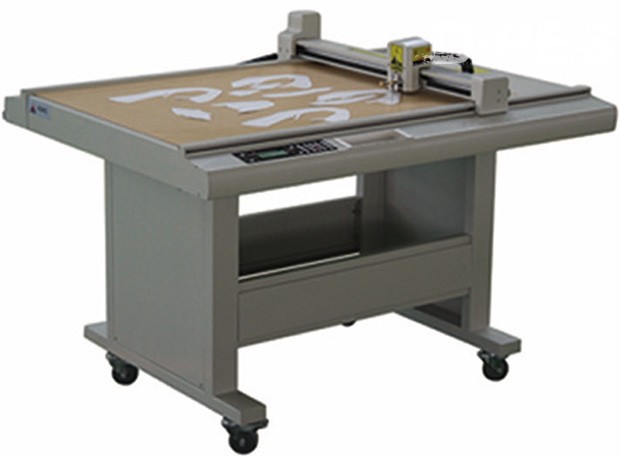

DE0906 shoes pattern die cut flat bed cutter plotter machine
A1 high speed vacuum cutter of synchronous belt
way of fixing paper way vacuum absorbing
driving material   Import synchronous belt
effective cutting range  900*600mm
cutting materials red hard paper,plastic board,white board,kraft paper,fibre
cutting way   drawing by pen,half cutting,whole cutting
cutting thickness 0.5-2mm
cutting precision   less or equal 0.1mm
overlapping precision less or equal 0.1mm
resolution ratio  0.025mm
max speed   1000mm/s
work time and character  continuous work,operating computer and cutting at the same time,linear high-speed transmission for data
transmitting port   international standards:parallel port/RSC232 serial port
capacity of bufferarea  buffer area of large capacity,it can finish high-speed transmission on for data at a time
intruction set  international standards :HP-GL or DM-PL form can be selected,it is compatible with all kinds of CAD softwares
numerical control board   LTD,all-english operating menu,contacbutton
tool type  special steel blade
pen type   general signing pen,oil pen,ball pen
main structure   cutting platform,hesd driving system,control cabinet,control mirco computer,frame,vacuum pump(DE0906)
voltage  AC 220V±10% 50 HZ
fuse standard  5A
